• Specificfation

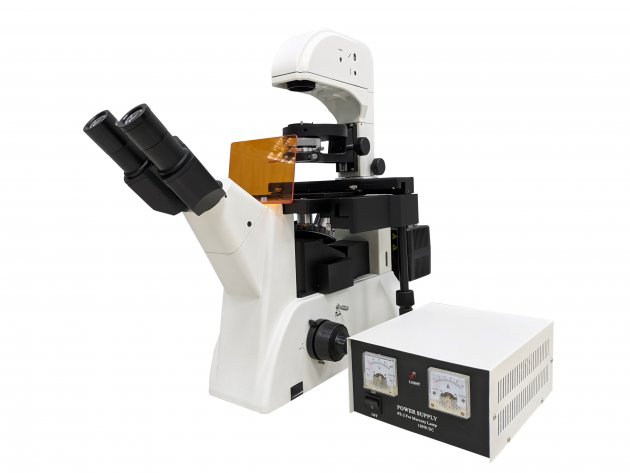

  Model	PF-338I
  Viewing head	Trinocular (Inclination of 30°, 100% image light for photography capable)
  Eyepiece	WF10X /(20mm)
  Nose Piece	Quintuple nosepiece inner locating on ball bearing
  Objective	∞ Plan Long Working PLL 10X ∞ Plan Long Working PLL 20X ∞ Plan Long Working PLL 40X ∞ Plan Long Working Phase Contrast PLL 10X (PHP) ∞ Plan Long Working Phase Contrast PLL 20X (PHP) ∞ Plan Long Working Phase Contrast PLL 40X (PHP)
  Fluoroscope box	Fluorescence filter system : G exciton wavelength:510~560nm B exciton wavelength:450~490nm V exciton wavelength:380~420nm UV exciton wavelength:330~400nm
  Magnifications	100X ~ 400X
  Stage	Double layer mechanical Size: 225mm X 205mm Moving range: 75mm X 40mm
  Focusing	Coaxial coarse & fine focusing adjustment Fine focusing scale Value 0.002mm
  Condenser	For halogen lamp with Field diaphragm
  Illumination	Epi-illumination,220v(110v)/100w Mercury lamp Transmission illumination: 6V30W halogen light variable
