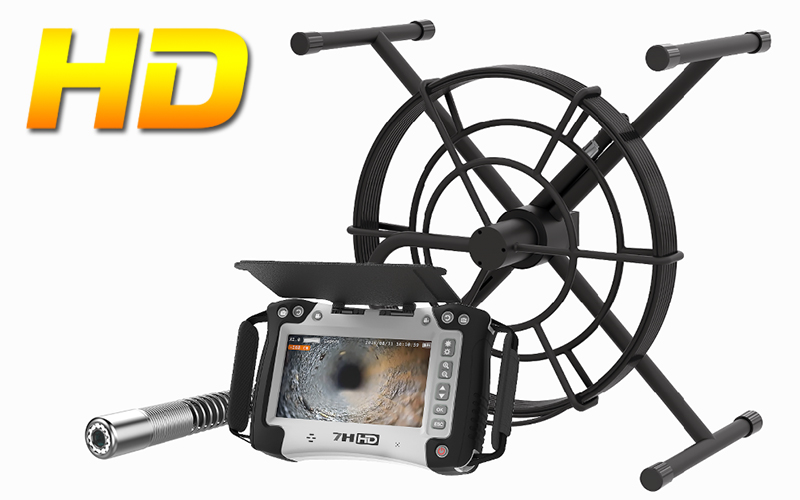

HD PIPE Inspection Probe (P Series)
Description：
-
Features Description Camera Diamete Ø 25 mm Ø 28 mm Ø 33 mm Camera Material Stainless Steel F.O.V. 100° D.O.F. 50 mm ~ 800 mm Resolution 1280 X 720 ( HD ) Light Source Hight Brightness 8 White LED Probe Diamete Ø 6.0 mm Probe Material Fiber Glass Probe Length 10M / 30M Interchangeable Head YES Waterpoof IP67 Working Temperature -20°C ~ 70°C Camera Type General Self-Leveling -
PH7 Main Console System
- 7" TFT LCD (1200 x 600).
- Snapshot & Video Recording
- LED brightness adjustment.
- 2X Zoom in and Image rotation .
- Built-in transmitter for locating function
- Text annotation function to enter comments through real keyboard (PS/2)
- Made in Taiwan. High Durability
- One Year Warranty.
- Ship worldwide
-
Model Type of Probe Tip Dia. Length Material of Tube Console System PH7-2510 HD PIPE Inspection Ø 25mm 10M Fiber Glass 7" HQ Monitor PH7-2530 HD PIPE Inspection Ø 25mm 30M Fiber Glass 7" HQ Monitor PH7-2810 HD PIPE Inspection Ø 28mm 10M Fiber Glass 7" HQ Monitor PH7-2830 HD PIPE Inspection Ø 28mm 30M Fiber Glass 7" HQ Monitor PH7-3010 HD PIPE Inspection Ø 30mm 10M Fiber Glass 7" HQ Monitor PH7-3030 HD PIPE Inspection Ø 30mm 30M Fiber Glass 7" HQ Monitor - Building Data...
-
Introduction
-
Specification
Features Description Camera Diamete Ø 25 mm Ø 28 mm Ø 33 mm Camera Material Stainless Steel F.O.V. 100° D.O.F. 50 mm ~ 800 mm Resolution 1280 X 720 ( HD ) Light Source Hight Brightness 8 White LED Probe Diamete Ø 6.0 mm Probe Material Fiber Glass Probe Length 10M / 30M Interchangeable Head YES Waterpoof IP67 Working Temperature -20°C ~ 70°C Camera Type General Self-Leveling -
Console System
PH7 Main Console System
- 7" TFT LCD (1200 x 600).
- Snapshot & Video Recording
- LED brightness adjustment.
- 2X Zoom in and Image rotation .
- Built-in transmitter for locating function
- Text annotation function to enter comments through real keyboard (PS/2)
- Made in Taiwan. High Durability
- One Year Warranty.
- Ship worldwide -
Model
Model Type of Probe Tip Dia. Length Material of Tube Console System PH7-2510 HD PIPE Inspection Ø 25mm 10M Fiber Glass 7" HQ Monitor PH7-2530 HD PIPE Inspection Ø 25mm 30M Fiber Glass 7" HQ Monitor PH7-2810 HD PIPE Inspection Ø 28mm 10M Fiber Glass 7" HQ Monitor PH7-2830 HD PIPE Inspection Ø 28mm 30M Fiber Glass 7" HQ Monitor PH7-3010 HD PIPE Inspection Ø 30mm 10M Fiber Glass 7" HQ Monitor PH7-3030 HD PIPE Inspection Ø 30mm 30M Fiber Glass 7" HQ Monitor -
Optional Accessory
-
