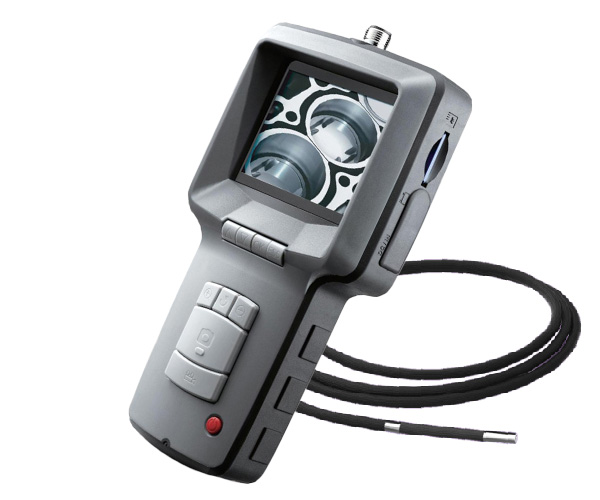

PM Series 3.5＂ LCD Videoscope Borescope Camera
Description：
- Snapshot & Video Recording with Audio.
- Snapshot while Recording / Replaying.
- LED brightness adjustment.
- 2X Zoom in and Image rotation .
- Photo Comparison function .
Download file
-
6 mm Dual Camera / Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope
Standard Accessory
Standard Package
Fast Delivery
-
Features Description LCD 3.5” TFT LCD (320 x 240) Snapshot JPEG ( 640 x 480 ) Recording ASF ( 640 x 480 ) Storage 8G SD card ( up to 32G ) Interface Mini USB 1.1/2.0 or AV out Rechargeable AV output NTSC & PAL Working temperature -10 ~ 60℃ Storage temperature 0 ~ 40℃ Battery Rechargeable Li-Polymer Battery Languages 26 Languages:
English / French / German / Italian / Spanish /
Portuguese / Japanese / Traditional Chinese / Simplified Chinese /
Danish / Dutch / Polish / Russian / Turkish / Swedish / Finnish /
Croatian / Czech / Greek / Arabic /Korean / Malay / Hindi /
Vietnamese / Thai / IndonesianDimension 215 * 115 * 35 (mm) Weight 0.430 kg (0.95 lb) -
2Way Articulation Probe
2 way articulation probe that checks angles hardly to reach.
Model: PRS39012 ~ PRVS39032
Articulation Type : 2Way
Tip Diameter : Ø3.9mm
Resolution : 320 x 240 ( QVGA )
Porbe Length : 1M / 2M / 3M
2Way Articulation VGA Probe
2 way articulation probe that checks angles hardly to reach.
Model: PRVS60012 ~ PRVS60062
Articulation Type : 2Way
Tip Diameter : Ø6.0mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 1M / 2M / 3M / 4M / 5M / 6M
360° Articulation VGA Probe 6mm (P series)
360° articulation probe that checks angles hardly to reach.
Model: PHVS-60024 ~ PHVS-60034
Articulation Type : 360°
Tip Diameter : Ø6.0mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 1.5M / 3M
PIPE Inspection Probe
Great for rugged and curved inspection / Stainless steel camera head / Water and dust proof / system options / Optional accessories.
Model: PRS-2010 - PRS-3030
Tip Diameter : Ø20mm / Ø25mm / Ø28mm / Ø30mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 10M / 30M / 50M
6 mm Dual Camera
Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope
Model: PMS-6001S / PMS-6002S / PMS-6003S / PRS-6001S / PRS -6002S / PRS-6003S
Tip Diameter : Ø6mm
Resolution : 320 x 240
Porbe Length : 1M / 2M / 3M
Light source : 4 front view; 3 side view, white LEDs, can be dimmed
Focus : 15 ~ 60 mm
IP rating : IP67 Waterproof up to 3.3FT (1M) / Dustproof -
Model Tip Dia. Length Resolution Material of Tube Articulation Features PMS-3901 Ø3.9mm 1M 320X240 Soft-Metal/Semi-Rigid PMS-3902 Ø3.9mm 2M 320X240 SM/SR PMS-3903 Ø3.9mm 3M 320X240 SM/SR PMS-3905 Ø3.9mm 5M 320X240 SM/SR PMS-3910 Ø3.9mm 10M 320X240 SM/SR PMS-6001S Ø6.0mm 1M 320X240 Flexible cable PMS-6002S Ø6.0mm 2M 320X240 Flexible cable PMS-6003S Ø6.0mm 3M 320X240 Flexible cable PMVS-5501 Ø5.5mm 1M 640X480 SM/SR PMVS-5502 Ø5.0mm 2M 640X480 SM/SR PMVS-5503 Ø5.5mm 3M 640X480 SM/SR PMVS-5505 Ø5.5mm 5M 640X480 SM/SR PMVS-5510 Ø5.5mm 10M 640X480 Soft-Metal PMVS-5520 Ø5.5mm 20M 640X480 Soft-Metal PMVS-5530 Ø5.5mm 30M 640X480 Soft-Metal PMVS-5540 Ø5.5mm 40M 640X480 Soft-Metal PMVS-8001 Ø8mm 1M 640X480 SM/SR High Brightness PMVS-8003 Ø8mm 3M 640X480 SM/SR High Brightness PMVS-8005 Ø8mm 5M 640X480 SM/SR High Brightness PMVS-8010 Ø8mm 10M 640X480 Soft-Metal High Brightness PMS-39012 Ø3.9mm 1M 320X240 Soft-Metal 2Way Articulation PMS-39022 Ø3.9mm 2M 320X240 Soft-Metal 2Way Articulation PMVS-60012 Ø6.0mm 1M 640X480 Soft-Metal 2Way Articulation PMVS-60022 Ø6.0mm 2M 640X480 Soft-Metal 2Way Articulation PMVS-60032 Ø6.0mm 3M 640X480 Soft-Metal 2Way Articulation PMVS-60042 Ø6.0mm 4M 640X480 Soft-Metal 2Way Articulation PMVS-60052 Ø6.0mm 5M 640X480 Soft-Metal 2Way Articulation PMVS-60062 Ø6.0mm 6M 640X480 Soft-Metal 2Way Articulation PMVS-60072 Ø6.0mm 7M 640X480 Soft-Metal 2Way Articulation PMVS-60024 Ø6.0mm 1.5M 640X480 Braided Stainless steel 360° Articulation PMVS-60034 Ø6.0mm 3M 640X480 Braided Stainless steel 360° Articulation PMGS-1515 Ø15mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-1530 Ø15mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-1550 Ø15mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2015 Ø20mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2030 Ø20mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2050 Ø20mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2515 Ø25mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2530 Ø25mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2550 Ø25mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2815 Ø28mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2830 Ø28mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2850 Ø28mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3015 Ø30mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3030 Ø30mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3050 Ø30mm 50M 640X480 Hard Soft-Metal Pipe Inspection
-
Introduction
6 mm Dual Camera / Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope
Standard Accessory
Standard Package
Fast Delivery
-
Specification
Features Description LCD 3.5” TFT LCD (320 x 240) Snapshot JPEG ( 640 x 480 ) Recording ASF ( 640 x 480 ) Storage 8G SD card ( up to 32G ) Interface Mini USB 1.1/2.0 or AV out Rechargeable AV output NTSC & PAL Working temperature -10 ~ 60℃ Storage temperature 0 ~ 40℃ Battery Rechargeable Li-Polymer Battery Languages 26 Languages:
English / French / German / Italian / Spanish /
Portuguese / Japanese / Traditional Chinese / Simplified Chinese /
Danish / Dutch / Polish / Russian / Turkish / Swedish / Finnish /
Croatian / Czech / Greek / Arabic /Korean / Malay / Hindi /
Vietnamese / Thai / IndonesianDimension 215 * 115 * 35 (mm) Weight 0.430 kg (0.95 lb) -
Inspection Probe
2Way Articulation Probe
2 way articulation probe that checks angles hardly to reach.
Model: PRS39012 ~ PRVS39032
Articulation Type : 2Way
Tip Diameter : Ø3.9mm
Resolution : 320 x 240 ( QVGA )
Porbe Length : 1M / 2M / 3M
2Way Articulation VGA Probe
2 way articulation probe that checks angles hardly to reach.
Model: PRVS60012 ~ PRVS60062
Articulation Type : 2Way
Tip Diameter : Ø6.0mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 1M / 2M / 3M / 4M / 5M / 6M
360° Articulation VGA Probe 6mm (P series)
360° articulation probe that checks angles hardly to reach.
Model: PHVS-60024 ~ PHVS-60034
Articulation Type : 360°
Tip Diameter : Ø6.0mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 1.5M / 3M
PIPE Inspection Probe
Great for rugged and curved inspection / Stainless steel camera head / Water and dust proof / system options / Optional accessories.
Model: PRS-2010 - PRS-3030
Tip Diameter : Ø20mm / Ø25mm / Ø28mm / Ø30mm
Resolution : 640 x 480 ( VGA )
Porbe Length : 10M / 30M / 50M
6 mm Dual Camera
Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope
Model: PMS-6001S / PMS-6002S / PMS-6003S / PRS-6001S / PRS -6002S / PRS-6003S
Tip Diameter : Ø6mm
Resolution : 320 x 240
Porbe Length : 1M / 2M / 3M
Light source : 4 front view; 3 side view, white LEDs, can be dimmed
Focus : 15 ~ 60 mm
IP rating : IP67 Waterproof up to 3.3FT (1M) / Dustproof -
Model
Model Tip Dia. Length Resolution Material of Tube Articulation Features PMS-3901 Ø3.9mm 1M 320X240 Soft-Metal/Semi-Rigid PMS-3902 Ø3.9mm 2M 320X240 SM/SR PMS-3903 Ø3.9mm 3M 320X240 SM/SR PMS-3905 Ø3.9mm 5M 320X240 SM/SR PMS-3910 Ø3.9mm 10M 320X240 SM/SR PMS-6001S Ø6.0mm 1M 320X240 Flexible cable PMS-6002S Ø6.0mm 2M 320X240 Flexible cable PMS-6003S Ø6.0mm 3M 320X240 Flexible cable PMVS-5501 Ø5.5mm 1M 640X480 SM/SR PMVS-5502 Ø5.0mm 2M 640X480 SM/SR PMVS-5503 Ø5.5mm 3M 640X480 SM/SR PMVS-5505 Ø5.5mm 5M 640X480 SM/SR PMVS-5510 Ø5.5mm 10M 640X480 Soft-Metal PMVS-5520 Ø5.5mm 20M 640X480 Soft-Metal PMVS-5530 Ø5.5mm 30M 640X480 Soft-Metal PMVS-5540 Ø5.5mm 40M 640X480 Soft-Metal PMVS-8001 Ø8mm 1M 640X480 SM/SR High Brightness PMVS-8003 Ø8mm 3M 640X480 SM/SR High Brightness PMVS-8005 Ø8mm 5M 640X480 SM/SR High Brightness PMVS-8010 Ø8mm 10M 640X480 Soft-Metal High Brightness PMS-39012 Ø3.9mm 1M 320X240 Soft-Metal 2Way Articulation PMS-39022 Ø3.9mm 2M 320X240 Soft-Metal 2Way Articulation PMVS-60012 Ø6.0mm 1M 640X480 Soft-Metal 2Way Articulation PMVS-60022 Ø6.0mm 2M 640X480 Soft-Metal 2Way Articulation PMVS-60032 Ø6.0mm 3M 640X480 Soft-Metal 2Way Articulation PMVS-60042 Ø6.0mm 4M 640X480 Soft-Metal 2Way Articulation PMVS-60052 Ø6.0mm 5M 640X480 Soft-Metal 2Way Articulation PMVS-60062 Ø6.0mm 6M 640X480 Soft-Metal 2Way Articulation PMVS-60072 Ø6.0mm 7M 640X480 Soft-Metal 2Way Articulation PMVS-60024 Ø6.0mm 1.5M 640X480 Braided Stainless steel 360° Articulation PMVS-60034 Ø6.0mm 3M 640X480 Braided Stainless steel 360° Articulation PMGS-1515 Ø15mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-1530 Ø15mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-1550 Ø15mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2015 Ø20mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2030 Ø20mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2050 Ø20mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2515 Ø25mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2530 Ø25mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2550 Ø25mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2815 Ø28mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2830 Ø28mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-2850 Ø28mm 50M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3015 Ø30mm 15M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3030 Ø30mm 30M 640X480 Hard Soft-Metal Pipe Inspection PMGS-3050 Ø30mm 50M 640X480 Hard Soft-Metal Pipe Inspection
