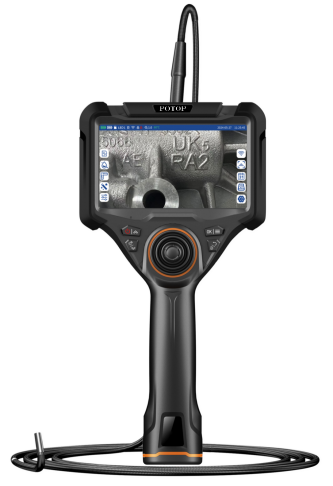

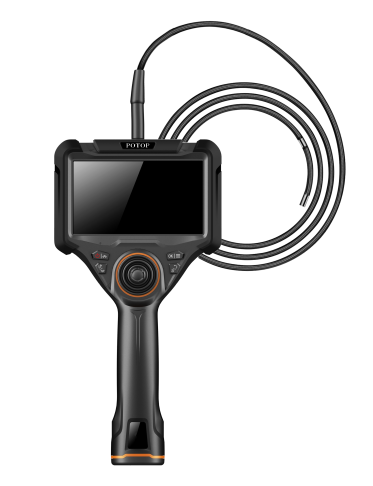

CP Series 5＂ HD Video Borescope Tungsten Probe 360°
Description：
- 5" HD IPS LCD Monitor
- Wear-resistant Tungsten Braided Probe
- 360° full swing articulation probe. Max 190° on each side.
- HD Camera 160,000 ~ 2,000,000 pixels.
‧ Snapshot & Video Recording
‧ Super Bright 50000 Lux LED brightness adjustment
‧ Detachable Probe & Display
-

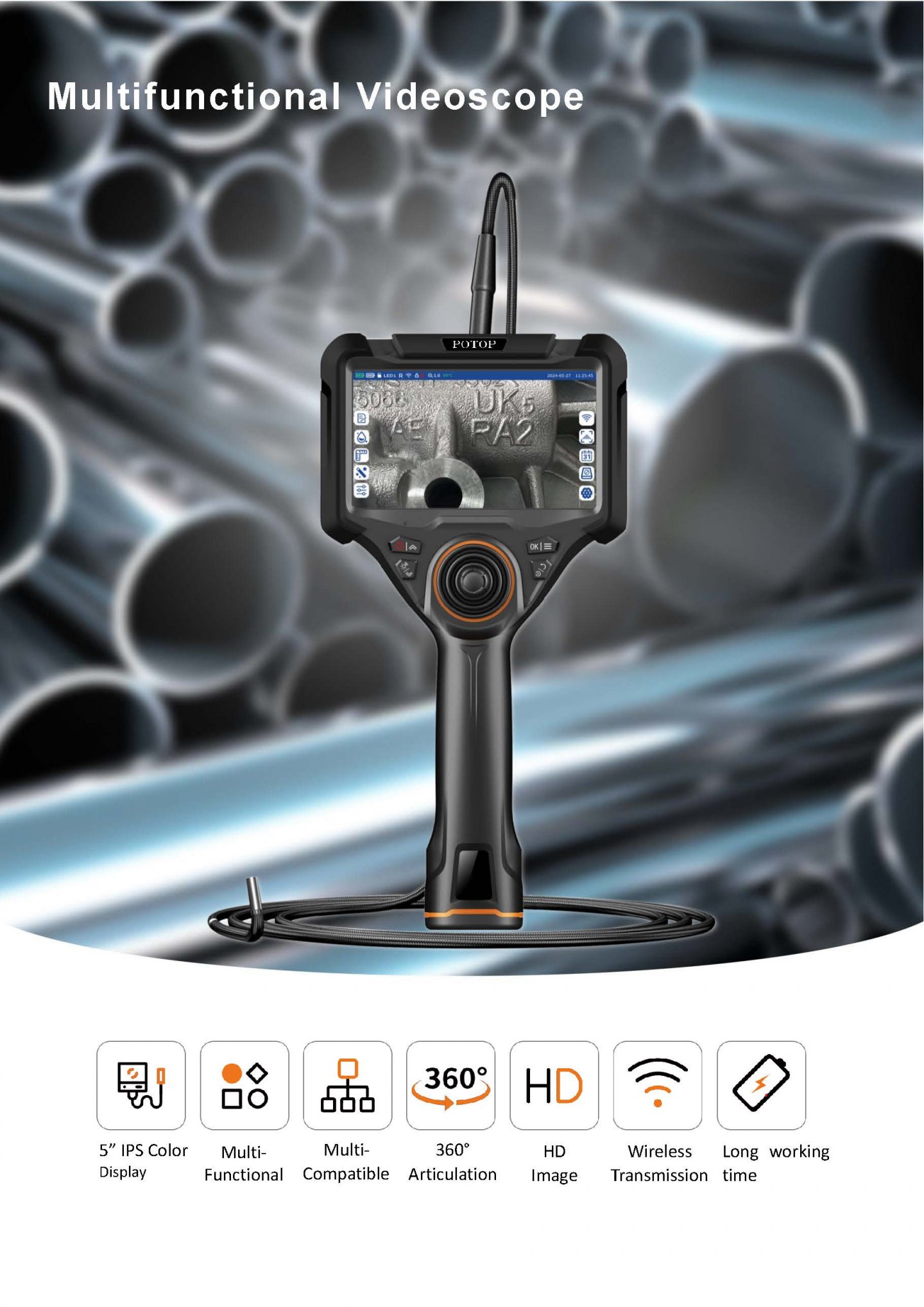

Video Borescope Key Features

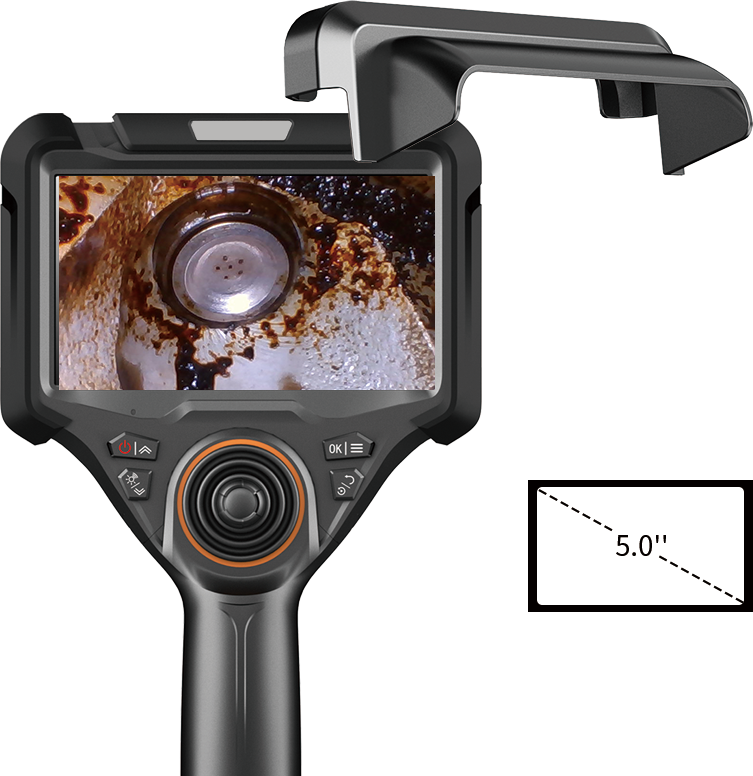

High Resolution Screen 5"

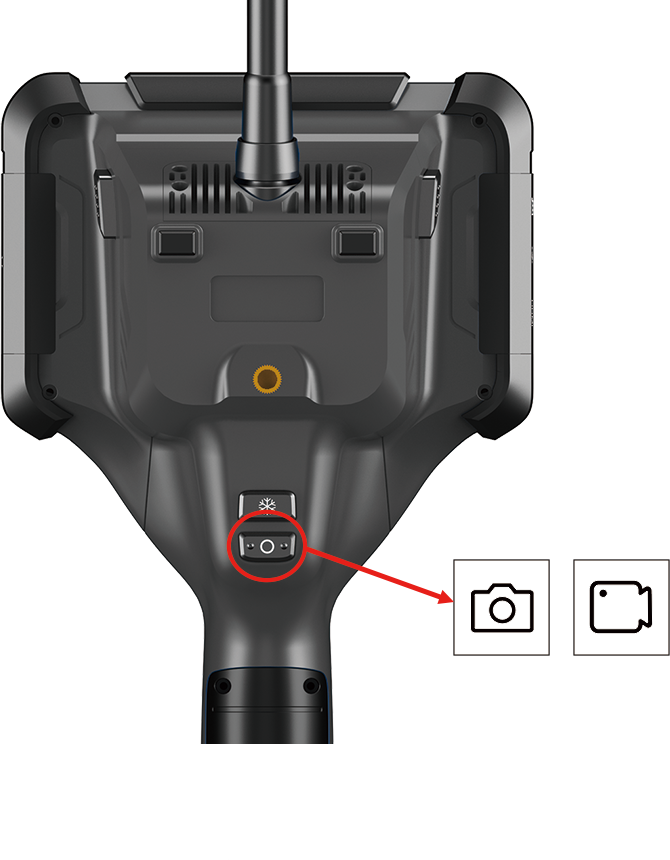

One Click Photo & Video.

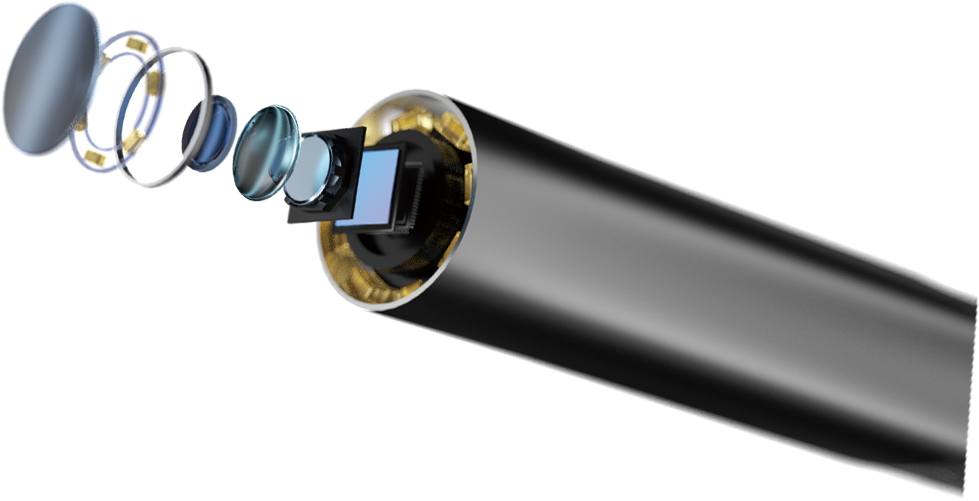

High Quality Camera Lens.

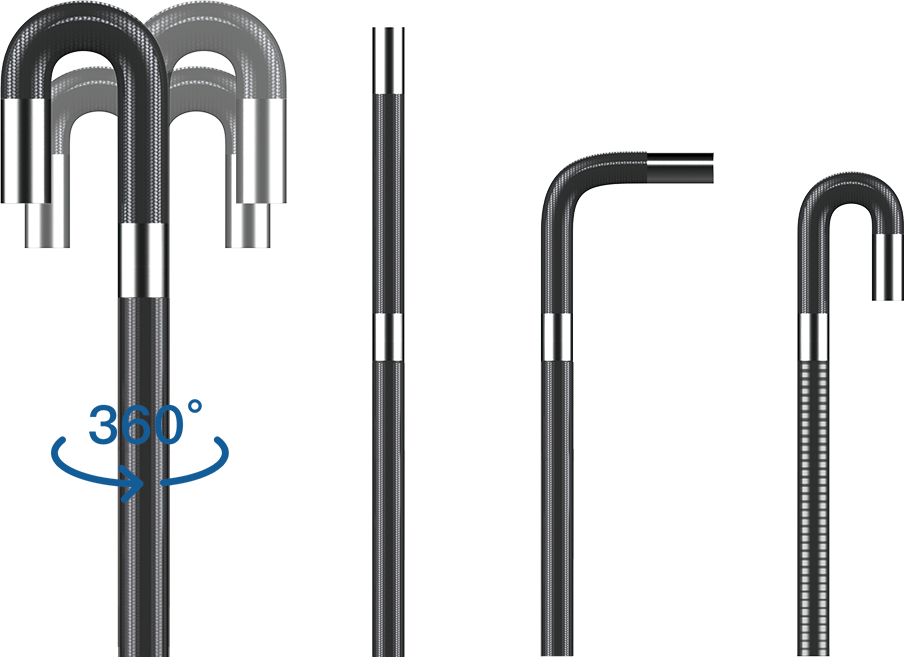

360° universal steering 180° bend, observe any hidden place.

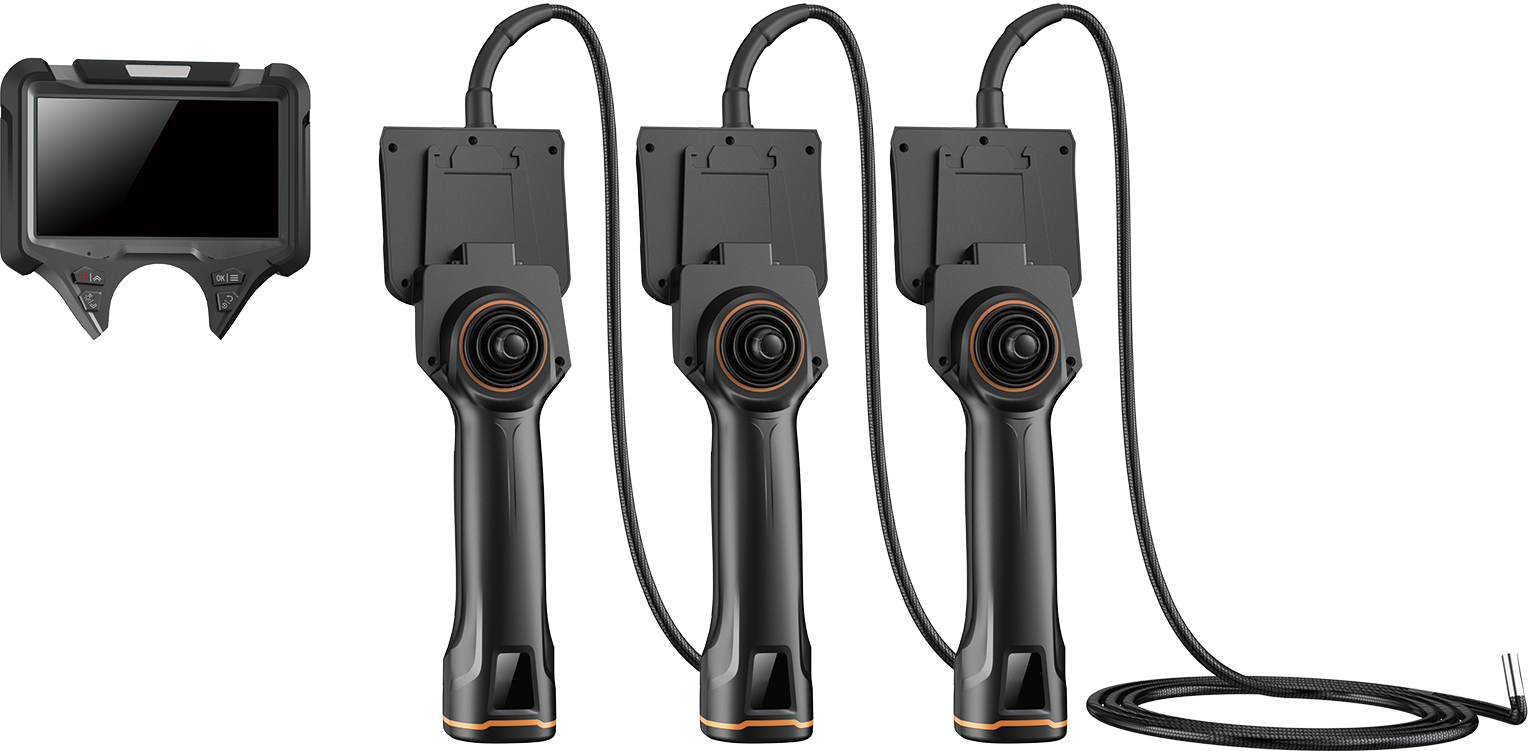

Modular design The host system and pipeline system can be plugged and separated.
Long battery life: 2 × 3200mAh. Up to 8 hours.

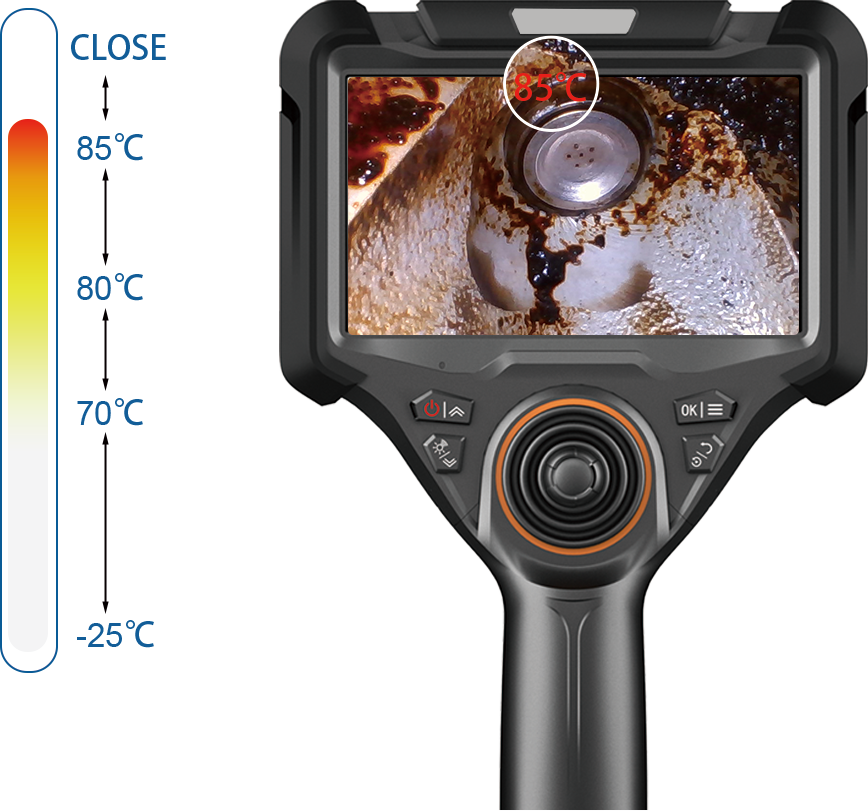

temperature real-time display, high temperature alarm function. (for option)
WiFi wireless transmission for multiple observers. (for option)
CP Series 5inch HD Borescope Operation Video

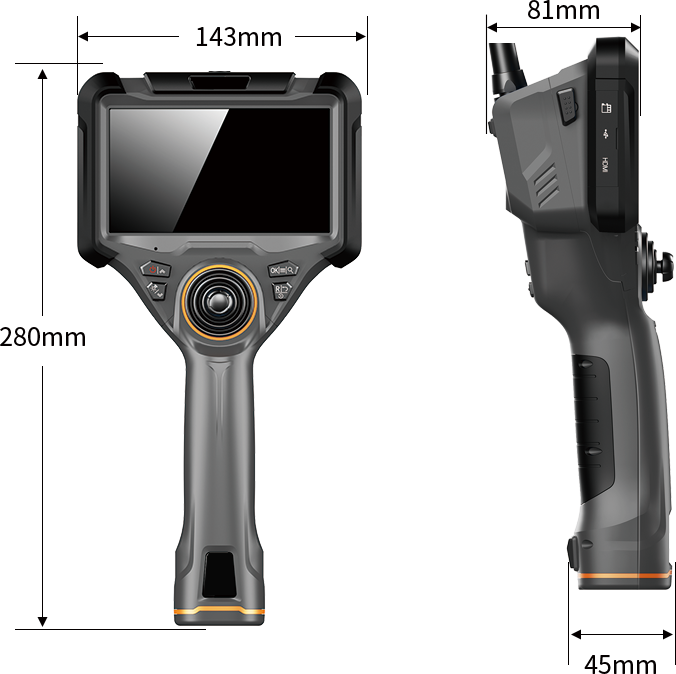

Monitor size.

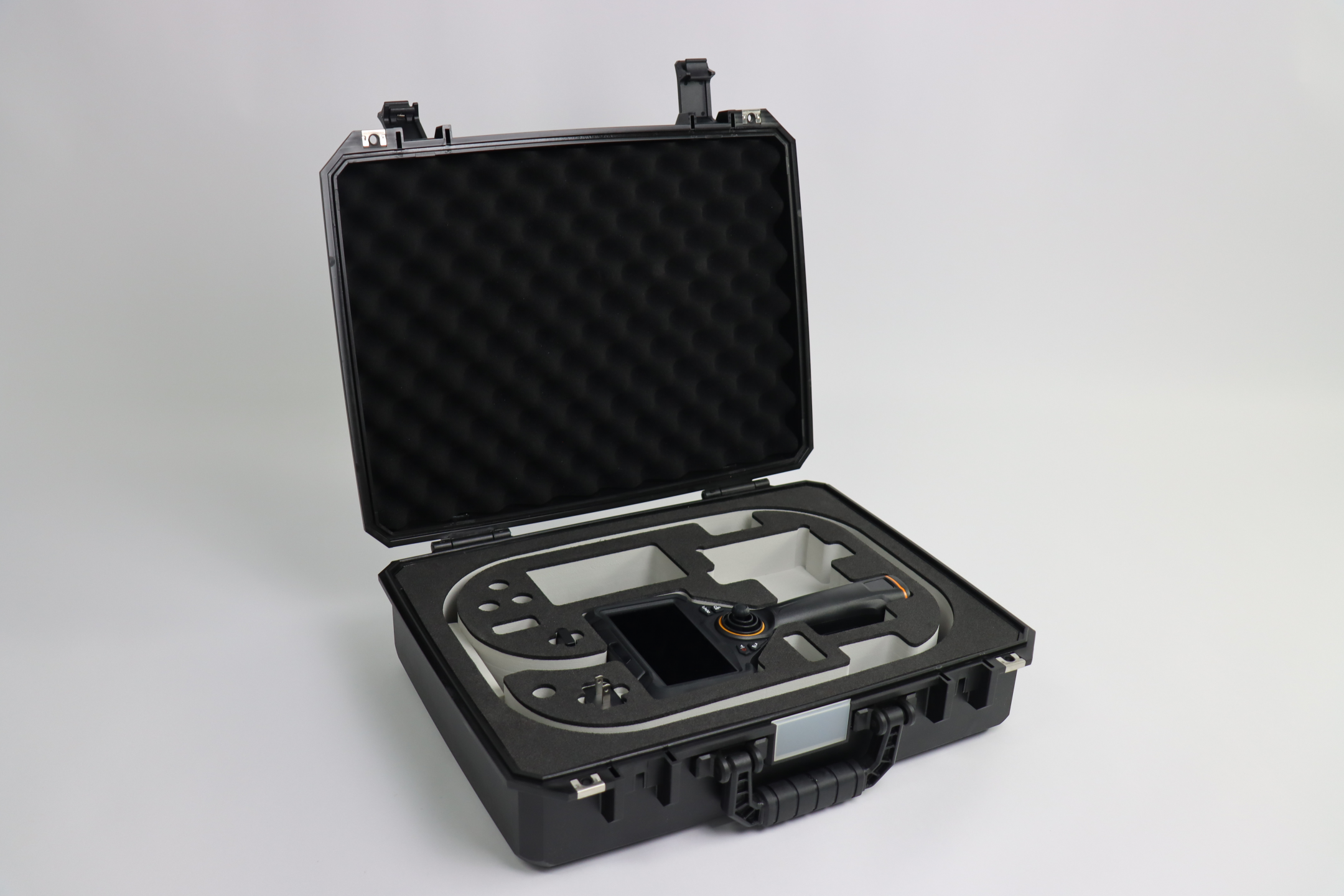

Shock Proof ABS Portable Case
Application
-
CP5 Series Technical Specifications – Video Borescopes Overview
Series CP5-39 CP5-60 Probe Diameter(mm) 3.9mm 6.0mm Viewing Direction 0° front view / 90° side view camera for option Camera Pixels 1280 x 720 D.O.F. 10-100mm F.O.V. 120° Image Resolution 1280 x 720 Video Resolution 1280 x 720 Articulation 360° Joystick-control Articulation Light Source Front LED Illuminance 20000 Lx 0~9 levels adjustable light Probe Material Movement of wear -resistant tungsten alloy wire Probe Length 1m / 2m / 3m Bending Angle max : 190° Waterproof Probe / Camera: IP68 ; Display: IP54 Protecting Device 80mm buffer protection device between tube and handle Display 5" color IPS display. All sight viewing angle, sunshade design Display Resolution 1280 x 720 Zoom In / Out Digital zoom 4X Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean / Polish/ Italian Software Function standard (default), black and white, warm light, cold light, negative film, 0° / 180° / mirror image White Balance Auto white balance/manual Screen Scale Function set the benchmark reference ruler for real - time image preview: circle, cross, and rectangle Wireless Transmission（WiFi） wireless access to device video data via a mobile terminal Android app (for option) Structure hand-held integrated design, pull-out compatible for replacement of insertion tube systems of different diameters/lengths/orientations Image / Video Format JPG / MP4 Data Port HDMI, video output, Type-C Storage Temperature -30℃~50℃ Working Temperature -30℃~50℃ Working Time ≥6h Battery Capacity 3.7V, 3200mAh×2 (Detachable 18650 lithium-ion rechargeable type) Videoscope Weight & Size 0.75Kg (Include batteries); Size: 280*143*81mm Compatibility Interchangeable monitor and tube with different diameters Portable Case ABS airtight shock-proof portable case, size: cm (Standard Series) Carton Size Export outer carton size: 50*16*42cm, GW: 3.5kgs (Standard Series) Standard Accessory instrument case: 1pc / videoscope: 1 set / card reader: 1 pc / batteries 2pcs /

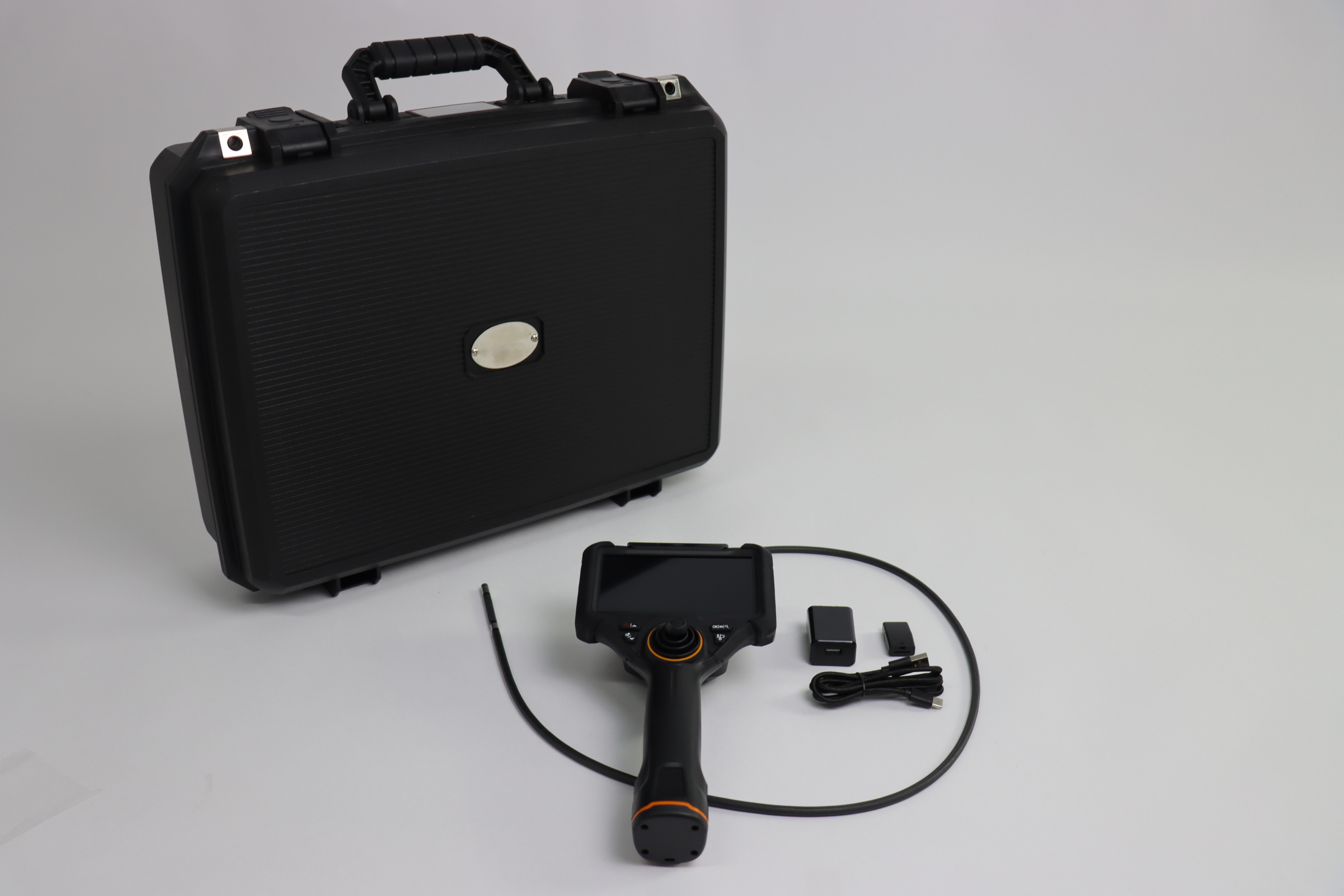

16G TF card: 1pc / charger: 1pc / USB cable: 1pc / user manual: 1 set / certification: 1 set -
Complete Specifications of CP5 Industrial Video Borescopes
CP5 Series (Interchangeable Display & Probe)
Model Display Tip Dia. Length Articulation Camera Resolution LED Light Detachable Probe CP5-39014 5" Ø3.9mm 1M 360˚(4Way) 1280x720(HD) 20000Lx
Yes.CP5-39024 5" Ø3.9mm 2M 360˚(4Way) 1280x720(HD) 20000Lx CP5-39034 5" Ø3.9mm 3M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60014 5" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60024 5" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60034 5" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) 20000Lx
-
Introduction
Video Borescope Key Features
High Resolution Screen 5"
One Click Photo & Video.High Quality Camera Lens.
360° universal steering 180° bend, observe any hidden place.
Modular design The host system and pipeline system can be plugged and separated.
Long battery life: 2 × 3200mAh. Up to 8 hours.
temperature real-time display, high temperature alarm function. (for option)WiFi wireless transmission for multiple observers. (for option)
CP Series 5inch HD Borescope Operation Video
Monitor size.
Shock Proof ABS Portable CaseApplication
-
Specification
CP5 Series Technical Specifications – Video Borescopes Overview
Series CP5-39 CP5-60 Probe Diameter(mm) 3.9mm 6.0mm Viewing Direction 0° front view / 90° side view camera for option Camera Pixels 1280 x 720 D.O.F. 10-100mm F.O.V. 120° Image Resolution 1280 x 720 Video Resolution 1280 x 720 Articulation 360° Joystick-control Articulation Light Source Front LED Illuminance 20000 Lx 0~9 levels adjustable light Probe Material Movement of wear -resistant tungsten alloy wire Probe Length 1m / 2m / 3m Bending Angle max : 190° Waterproof Probe / Camera: IP68 ; Display: IP54 Protecting Device 80mm buffer protection device between tube and handle Display 5" color IPS display. All sight viewing angle, sunshade design Display Resolution 1280 x 720 Zoom In / Out Digital zoom 4X Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean / Polish/ Italian Software Function standard (default), black and white, warm light, cold light, negative film, 0° / 180° / mirror image White Balance Auto white balance/manual Screen Scale Function set the benchmark reference ruler for real - time image preview: circle, cross, and rectangle Wireless Transmission（WiFi） wireless access to device video data via a mobile terminal Android app (for option) Structure hand-held integrated design, pull-out compatible for replacement of insertion tube systems of different diameters/lengths/orientations Image / Video Format JPG / MP4 Data Port HDMI, video output, Type-C Storage Temperature -30℃~50℃ Working Temperature -30℃~50℃ Working Time ≥6h Battery Capacity 3.7V, 3200mAh×2 (Detachable 18650 lithium-ion rechargeable type) Videoscope Weight & Size 0.75Kg (Include batteries); Size: 280*143*81mm Compatibility Interchangeable monitor and tube with different diameters Portable Case ABS airtight shock-proof portable case, size: cm (Standard Series) Carton Size Export outer carton size: 50*16*42cm, GW: 3.5kgs (Standard Series) Standard Accessory instrument case: 1pc / videoscope: 1 set / card reader: 1 pc / batteries 2pcs /
16G TF card: 1pc / charger: 1pc / USB cable: 1pc / user manual: 1 set / certification: 1 set -
Model
Complete Specifications of CP5 Industrial Video Borescopes
CP5 Series (Interchangeable Display & Probe)
Model Display Tip Dia. Length Articulation Camera Resolution LED Light Detachable Probe CP5-39014 5" Ø3.9mm 1M 360˚(4Way) 1280x720(HD) 20000Lx
Yes.CP5-39024 5" Ø3.9mm 2M 360˚(4Way) 1280x720(HD) 20000Lx CP5-39034 5" Ø3.9mm 3M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60014 5" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60024 5" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) 20000Lx CP5-60034 5" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) 20000Lx
