- Produces sharp, clear, and bright HD images
- Equipped with USB-C charging and data sharing capabilities
- Supports HDMI output
- Features an image comparison function
- Allows for mirror/rotate/negative image adjustments
- Includes a photo annotation/watermark function
- Designed to withstand drops of up to 1 meter
- Provides IP54 protection for the display
- Supports USB-to-computer operation
- Has the function of calculating meters

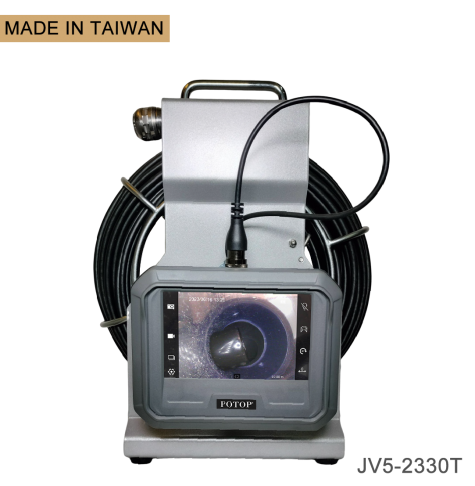

- Made in Taiwan. High Durability
-

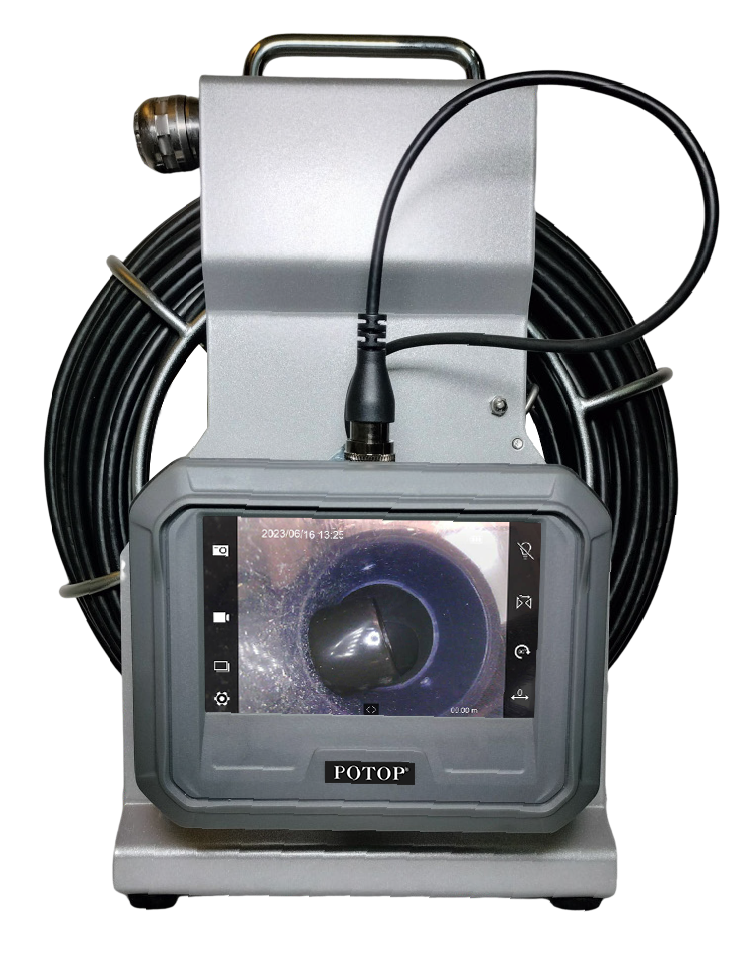

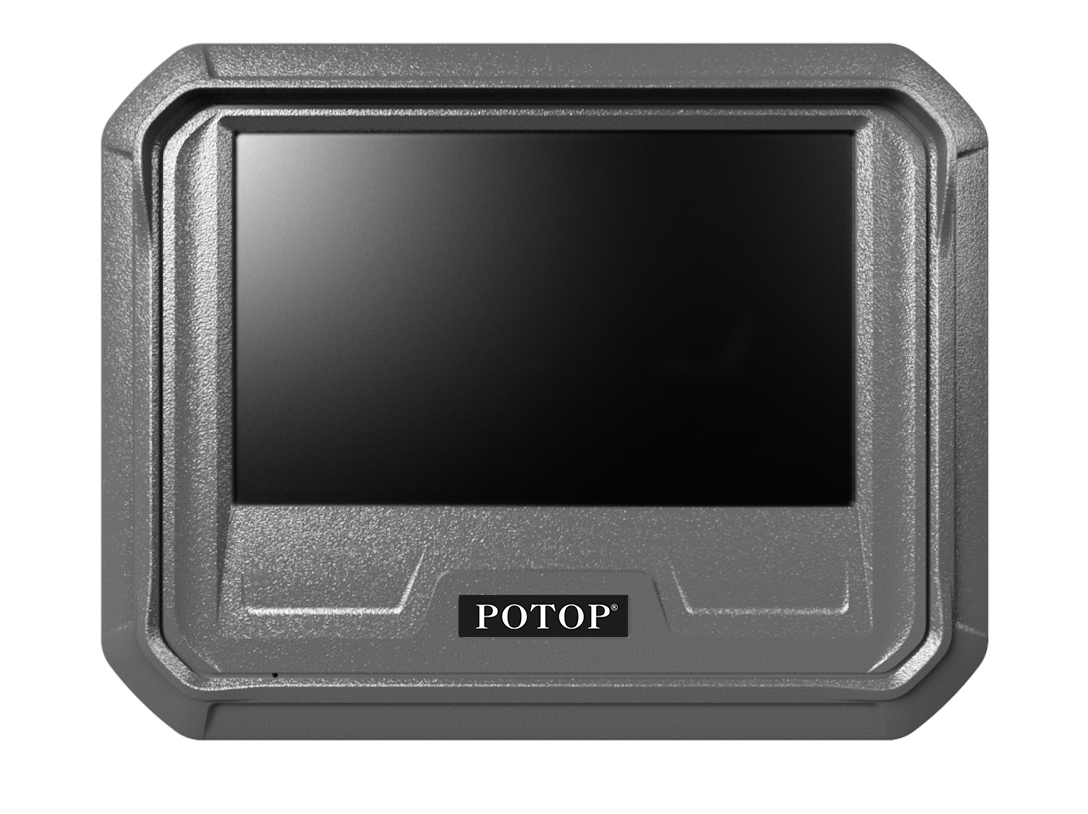

5” Touchscreen 800x480 pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
for pipe inspection application field
Convenient design for work
and portability
IPX7 level waterproof Super bright LED on camera.
Compact portable design.
Has the function of calculating meters
Compare function
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAG
provides custom build photo/video storage folder under TAG.

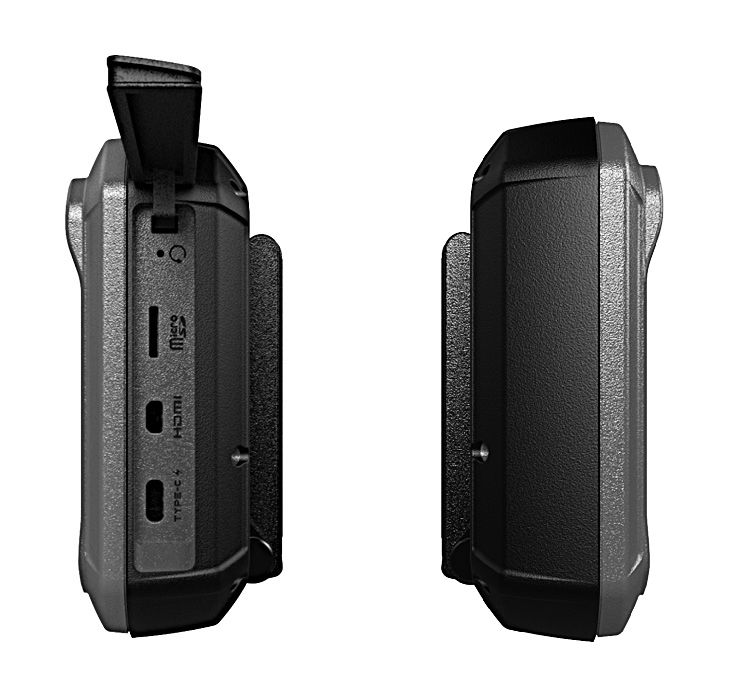

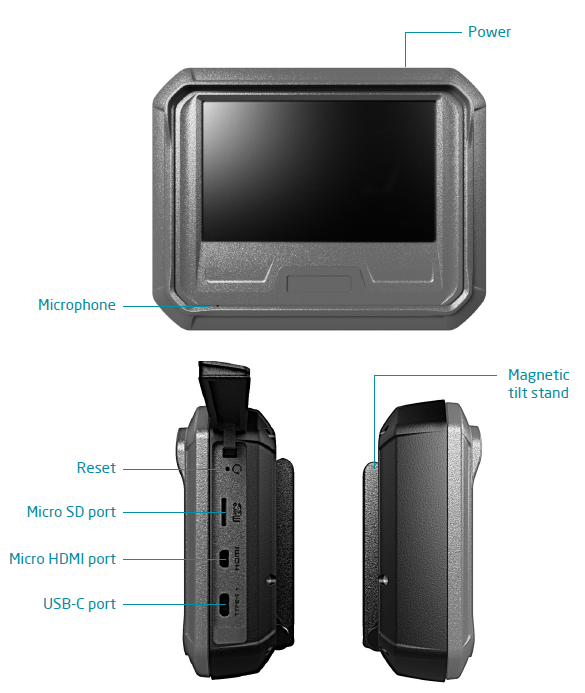

Introduction to each part
Complete Package & Standard Accessory
Application•Aircraft Turbines •Airframe Inspections •Bearings & Gearboxes •Chemical Processing •Co-Gen Plants •Corrosion •Motors •PC Pumps •Electronic Assemblies •Heat Exchangers & Boilers •Heavy Equipment Maintenance •HVAC and Mechanical •Land-Based Turbines •Large Diesel Engines •Metal Castings •Military/EOD/Law Enforcement •Mining & Exploration Maintenance •Nuclear Power •Oil & Gas Maintenance •Paper Mills •Power Gen •Pumps & Valves •Engines •Refineries •Wind Turbines •Drain/Sewer/Pipe •Hard-to-reach places •Non Destructive Testing
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Series JX5-28 Probe Diameter 28mm Viewing Direction 0° Front View Camera Pixels 1920 x 1080 D.O.F. 10 mm ~ ∞ F.O.V. 150° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation Non Light Source Front View: Front LED Illuminance adjustable light Probe Material Fiber-reinforced plastic Probe Length 30m Bending Angle Non Waterproof Probe IP67 Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator, Meter reset Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature 0℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card -
Model Tip Dia. Length Resolution Material of Tube Feature JX5-2830M Ø28mm 30M 1920X1080 Fiber-reinforced plastic Pipe lnspection -
What Is Pipe Inspection Camera?
Pipe inspection cameras also called sewer cameras, drain cameras as well as snake cameras are a type of non-articulating inspection camera used to perform a visual inspection of pipe lines and including underground pipes and architecture pipes. Typical sewer inspection camera diameters range from 6mm diameter up to 2” diameters and lengths from 10 meter to 100 meter. Pipeline inspection systems enable operators to visually inspect pipes and pipe walls in drain lines from 1 inches to 20 inches in diameter.
Usually pipe inspection cameras are designed with a video camera on its tip. Most sewer inspection systems have LED lighting at the tip to lighten the inspection space. Pipe cameras are flexible for ideal maneuverability, allowing users to carry out visual inspections through the elbows, turns and bends of pipe lines and plumbing pipes.
Well thought-out by lots of plumbers as one of the most valuable device in the plumbing industry, pipe inspection cameras are specifically designed waterproof to offer a thorough inspection for countless water exposed piping environments.
Generall Application:
Water Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing‧ Search & Rescue applications ‧ Military
-
Introduction
5” Touchscreen 800x480 pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
for pipe inspection application fieldConvenient design for work
and portability
IPX7 level waterproof Super bright LED on camera.
Compact portable design.
Has the function of calculating metersCompare function
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAG
provides custom build photo/video storage folder under TAG.
Introduction to each part
Complete Package & Standard Accessory
Application•Aircraft Turbines •Airframe Inspections •Bearings & Gearboxes •Chemical Processing •Co-Gen Plants •Corrosion •Motors •PC Pumps •Electronic Assemblies •Heat Exchangers & Boilers •Heavy Equipment Maintenance •HVAC and Mechanical •Land-Based Turbines •Large Diesel Engines •Metal Castings •Military/EOD/Law Enforcement •Mining & Exploration Maintenance •Nuclear Power •Oil & Gas Maintenance •Paper Mills •Power Gen •Pumps & Valves •Engines •Refineries •Wind Turbines •Drain/Sewer/Pipe •Hard-to-reach places •Non Destructive Testing
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Specification
Series JX5-28 Probe Diameter 28mm Viewing Direction 0° Front View Camera Pixels 1920 x 1080 D.O.F. 10 mm ~ ∞ F.O.V. 150° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation Non Light Source Front View: Front LED Illuminance adjustable light Probe Material Fiber-reinforced plastic Probe Length 30m Bending Angle Non Waterproof Probe IP67 Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator, Meter reset Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature 0℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card -
Model
Model Tip Dia. Length Resolution Material of Tube Feature JX5-2830M Ø28mm 30M 1920X1080 Fiber-reinforced plastic Pipe lnspection -
Application
What Is Pipe Inspection Camera?
Pipe inspection cameras also called sewer cameras, drain cameras as well as snake cameras are a type of non-articulating inspection camera used to perform a visual inspection of pipe lines and including underground pipes and architecture pipes. Typical sewer inspection camera diameters range from 6mm diameter up to 2” diameters and lengths from 10 meter to 100 meter. Pipeline inspection systems enable operators to visually inspect pipes and pipe walls in drain lines from 1 inches to 20 inches in diameter.
Usually pipe inspection cameras are designed with a video camera on its tip. Most sewer inspection systems have LED lighting at the tip to lighten the inspection space. Pipe cameras are flexible for ideal maneuverability, allowing users to carry out visual inspections through the elbows, turns and bends of pipe lines and plumbing pipes.
Well thought-out by lots of plumbers as one of the most valuable device in the plumbing industry, pipe inspection cameras are specifically designed waterproof to offer a thorough inspection for countless water exposed piping environments.
Generall Application:
Water Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing‧ Search & Rescue applications ‧ Military
-
