- Produces sharp, clear, and bright HD images
- Equipped with USB-C charging and data sharing capabilities
- Supports HDMI output
- Features an image comparison function
- Allows for mirror/rotate/negative image adjustments
- Includes a photo annotation/watermark function
- Designed to withstand drops of up to 1 meter
- Provides IP54 protection for the display
- Supports USB-to-computer operation
- Made in Taiwan. High Durability
-
5” Touchscreen 800x480 pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
Light & Handy
The JX5 is especially useful in automotive inspections or processing plants where many devices work at different production stages. It is modularly designed and can adjust to your specific inspection needs.
Equipped with 3.9mm 2way detection tube
Extremely small radius
4.9 mm dual-camera probe
Front view 0º & Side view 90º
for pipe inspection application field
Convenient design for work and portability
Compare function
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAG
provides custom build photo/video storage folder under TAG.
Introduction to each part
Complete Package & Standard Accessory
Application•Aircraft Turbines •Airframe Inspections •Bearings & Gearboxes •Chemical Processing •Co-Gen Plants •Corrosion •Motors •PC Pumps •Electronic Assemblies •Heat Exchangers & Boilers •Heavy Equipment Maintenance •HVAC and Mechanical •Land-Based Turbines •Large Diesel Engines •Metal Castings •Military/EOD/Law Enforcement •Mining & Exploration Maintenance •Nuclear Power •Oil & Gas Maintenance •Paper Mills •Power Gen •Pumps & Valves •Engines •Refineries •Wind Turbines •Drain/Sewer/Pipe •Hard-to-reach places •Non Destructive Testing
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Series JX5-39 JX5-49 JX5-28 Probe Diameter 3.9mm 4.9mm 28mm Viewing Direction 0° Front View 0° Front View & 90° Side View 0° Front View Camera Pixels 1920 x 1080 D.O.F. 10mm ~ 100mm 10 mm ~ ∞ F.O.V. 90° 150° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation 2-WAY Articulation Non Non Light Source Front View: Front LED Dual View: Front LED + Side LEDFront View: Front LED Illuminance adjustable light Probe Material Semi-rigid steel Stainless steel braided Fiber-reinforced plastic Probe Length 1m 1m 30m Bending Angle 180° Non Waterproof Probe IP67 Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature 0℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card Software JX5 UsbVideoScope -
Model Tip Dia. Length Resolution Material of Tube Feature JX5-39012 Ø3.9mm 1M 1920X1080 Braided Stainless Steel 2Way Articulation JX5-4901D Ø4.9mm 1M 1920X1080 Semi-rigid steel Dual-cameras JX5-2830M Ø28mm 30M 1920X1080 Fiber-reinforced plastic Pipe lnspection
-
Introduction
5” Touchscreen 800x480 pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
Light & Handy
The JX5 is especially useful in automotive inspections or processing plants where many devices work at different production stages. It is modularly designed and can adjust to your specific inspection needs.

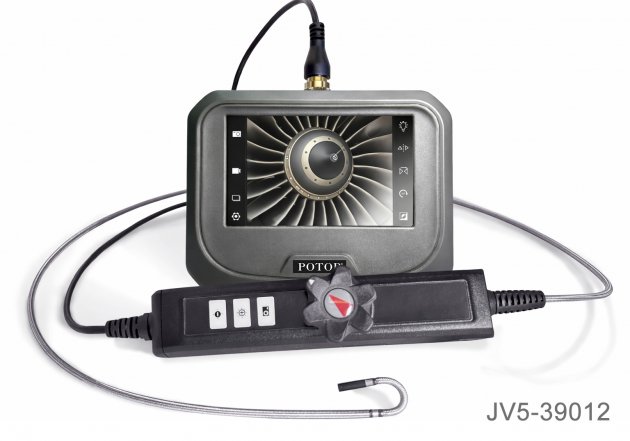

Equipped with 3.9mm 2way detection tube
Extremely small radius

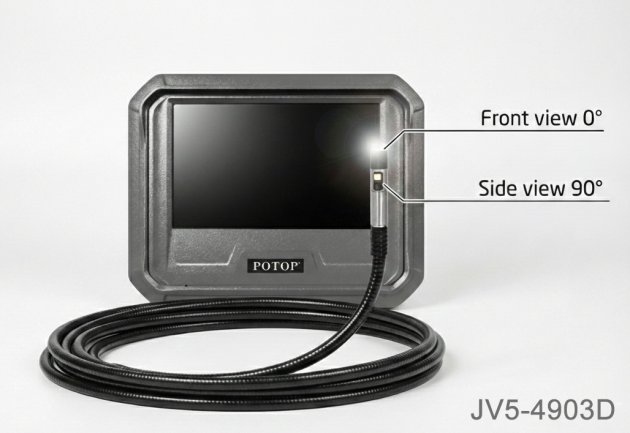

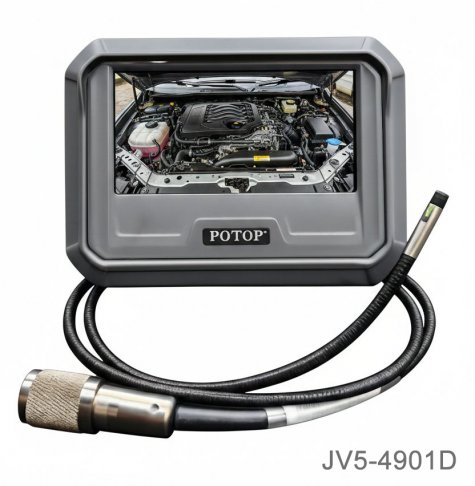

4.9 mm dual-camera probe
Front view 0º & Side view 90º
for pipe inspection application field
Convenient design for work and portabilityCompare function
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAG
provides custom build photo/video storage folder under TAG.
Introduction to each part
Complete Package & Standard Accessory
Application•Aircraft Turbines •Airframe Inspections •Bearings & Gearboxes •Chemical Processing •Co-Gen Plants •Corrosion •Motors •PC Pumps •Electronic Assemblies •Heat Exchangers & Boilers •Heavy Equipment Maintenance •HVAC and Mechanical •Land-Based Turbines •Large Diesel Engines •Metal Castings •Military/EOD/Law Enforcement •Mining & Exploration Maintenance •Nuclear Power •Oil & Gas Maintenance •Paper Mills •Power Gen •Pumps & Valves •Engines •Refineries •Wind Turbines •Drain/Sewer/Pipe •Hard-to-reach places •Non Destructive Testing
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Specification
Series JX5-39 JX5-49 JX5-28 Probe Diameter 3.9mm 4.9mm 28mm Viewing Direction 0° Front View 0° Front View & 90° Side View 0° Front View Camera Pixels 1920 x 1080 D.O.F. 10mm ~ 100mm 10 mm ~ ∞ F.O.V. 90° 150° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation 2-WAY Articulation Non Non Light Source Front View: Front LED Dual View: Front LED + Side LEDFront View: Front LED Illuminance adjustable light Probe Material Semi-rigid steel Stainless steel braided Fiber-reinforced plastic Probe Length 1m 1m 30m Bending Angle 180° Non Waterproof Probe IP67 Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature 0℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card Software JX5 UsbVideoScope -
Model
Model Tip Dia. Length Resolution Material of Tube Feature JX5-39012 Ø3.9mm 1M 1920X1080 Braided Stainless Steel 2Way Articulation JX5-4901D Ø4.9mm 1M 1920X1080 Semi-rigid steel Dual-cameras JX5-2830M Ø28mm 30M 1920X1080 Fiber-reinforced plastic Pipe lnspection
-
