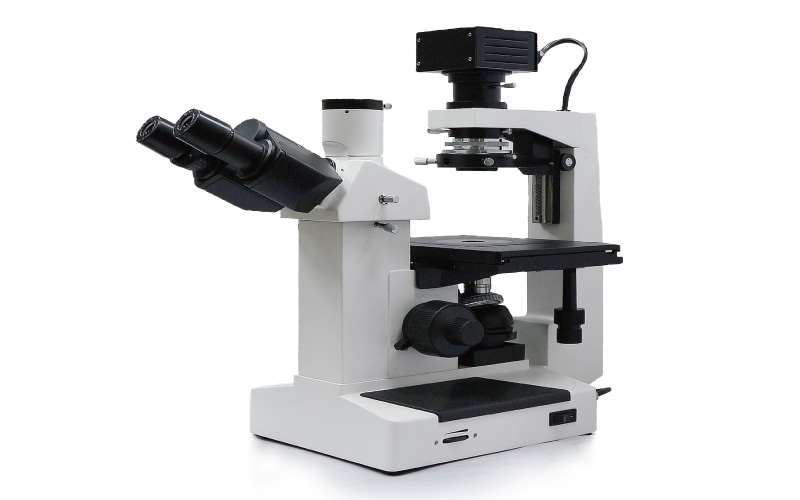

PB-233I
-
Model PB-233I Viewing head Trinocular (Inclination of 30°, 100% image light for photography capable) Interpupillary Distance 55mm -75mm Eyepiece WF10 X / (20mm) Nosepiece Quadruple nosepiece inner locating on ball bearing Objective Long working distance plan achromatic :
PL L 10X/0.25
PL L 25X/0.40
PL L 40X/0.60
PL L 10X/0.25 PHPStage Double layers mechanical stage :
Stage size: 200mm × 152mm
Moving range: 75mm × 30mmFocusing Coaxial coarse & fine focusing adjustment with rack and pinion mechanism. Fine focusing scale Value 0.002mm Shelf of specimen Match to install Φ68mm or 77mm X 33mm culture utensi Filter Blue、Green、Frosted Filters
Centering telescopeSliding phase contrast unit 10X Impellent style phase plate Illumination 6V20W Built-in brightness Variable
-
Specificfation
Model PB-233I Viewing head Trinocular (Inclination of 30°, 100% image light for photography capable) Interpupillary Distance 55mm -75mm Eyepiece WF10 X / (20mm) Nosepiece Quadruple nosepiece inner locating on ball bearing Objective Long working distance plan achromatic :
PL L 10X/0.25
PL L 25X/0.40
PL L 40X/0.60
PL L 10X/0.25 PHPStage Double layers mechanical stage :
Stage size: 200mm × 152mm
Moving range: 75mm × 30mmFocusing Coaxial coarse & fine focusing adjustment with rack and pinion mechanism. Fine focusing scale Value 0.002mm Shelf of specimen Match to install Φ68mm or 77mm X 33mm culture utensi Filter Blue、Green、Frosted Filters
Centering telescopeSliding phase contrast unit 10X Impellent style phase plate Illumination 6V20W Built-in brightness Variable
