3.9mm Insert Tube For Diesel Engine

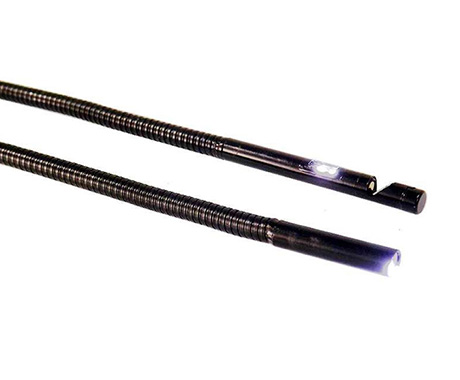

3.9mm side-view(90°) Insert Tube
3.9mm forward view Insert Tube
PATENTS APPROVED/PENDING
A professional borescope designed for professionals
Material
PVC Sheathing
Stainless Braid
Stainless Steel Flat-wire Coil
Semi rigid(SR):Bendable and can be in a fixed position
Soft metal(SM):Soft,bendable and resilient.
-
Features Description Camera Diamete Ø 3.9 mm Ø 5.5 mm Ø 8.5 mm Camera Type Front / Side (optional) Front Only Front Only F.O.V 56° D.O.F. 10 mm ~ 60 mm Resolution 320 X 240 ( QVGA ) Probe Material Semi-Rigid (SR) Soft-Metal (SM)
Semi-Rigid (SR)Semi-Rigid (SR) Light Source Front View (White LED * 3 )
Side View (White LED *2 )Front View (White LED * 4 ) White LED * 6 Probe Length 1M / 2M / 3M SM : 1M / 2M / 3M / 5M / 10M / 30M
SR : 1M / 2M / 3M1M / 2M / 3M Working Temperature -10°C ~ 60°C Working Temperature Unavailable 70°, 90°, 110° Side View Mirror Unavailable -
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model Tip Dia. Length Material of Tube Console System JKR-3901 Ø 3.9mm 1M Semi-Rigid 7" Monitor JKR-3902 Ø 3.9mm 2M Semi-Rigid 7" Monitor JKR-3903 Ø 3.9mm 3M Semi-Rigid 7" Monitor JKS-5501 Ø 5.5mm 1M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5502 Ø 5.5mm 2M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5503 Ø 5.5mm 3M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5505 Ø 5.5mm 5M Soft-Metal 7" Monitor JKS-5510 Ø 5.5mm 10M Soft-Metal 7" Monitor JKS-5530 Ø 5.5mm 30M Soft-Metal 7" Monitor JKR-8501 Ø 8.5mm 1M Semi-Rigid 7" Monitor JKR-8502 Ø 8.5mm 2M Semi-Rigid 7" Monitor JKR-8503 Ø 8.5mm 3M Semi-Rigid 7" Monitor JFR-3901 Ø 3.9mm 1M Semi-Rigid 3.5" Monitor JFR-3902 Ø 3.9mm 2M Semi-Rigid 3.5" Monitor JFR-3903 Ø 3.9mm 3M Semi-Rigid 3.5" Monitor JFS-5501 Ø 5.5mm 1M Soft-Metal (Semi-Rigid) 3.5" Monitor JFS-5502 Ø 5.5mm 2M Soft-Metal (Semi-Rigid) 3.5" Monitor JKS-5503 Ø 5.5mm 3M Soft-Metal (Semi-Rigid) 3.5" Monitor JFS-5505 Ø 5.5mm 5M Soft-Metal 3.5" Monitor JFS-5510 Ø 5.5mm 10M Soft-Metal 3.5" Monitor JFS-5530 Ø 5.5mm 30M Soft-Metal 3.5" Monitor JFR-8501 Ø 8.5mm 1M Semi-Rigid 3.5" Monitor JFR-8502 Ø 8.5mm 2M Semi-Rigid 3.5" Monitor JFR-8503 Ø 8.5mm 3M Semi-Rigid 3.5" Monitor -
Climbing Ball
For Ø5.5mm Probe
- Diameter : Ø15mm / Ø25mm
Side Mirror
For Ø5.5mm Probe
- Angle : 70° / 90° / 110°
-
Rigid? Semi-rigid? Soft-metal Probe of Video BorescopeRigid: Rigid borescopes are the most inexpensive type of borescope. A rigid borescope consists of a single hollow tube along with an eyepiece, lenses and a light source.Their movement is limited. Users can inspect objects only up to a certain level because of lacking of flexibility. They are usually used in areas that have direct access to because they have little to no flexibility. They transmit images by traditional lenses that display through an eyepiece. Inspectors commonly use this type for its image clarity and durability.Flexible: A flexible videoscope or video borescope with soft-metal probe is an advanced type of borescope that has a very small image sensor embedded into the tip of the scope.The video image is relayed from the tip and camera lens assembly back to the display via internal wiring.This is unlike a traditional rigid borescope and flexible fiberscope. Inspectors commonly use this type for its image versatility,agility, and efficiency.Semi-rigid: A improvement from rigid borescopes, semi-rigid borescopes are bendable and best for confined spaces that do not offer room for articulation.In terms of current technology, semi-rigid probes and soft-metal probes have the same image quality, light, and durability. Which one to choose depends on the purpose of usage and application.
-
Introduction
3.9mm Insert Tube For Diesel Engine
3.9mm side-view(90°) Insert Tube
3.9mm forward view Insert Tube
PATENTS APPROVED/PENDING
A professional borescope designed for professionals
Material
PVC Sheathing
Stainless Braid
Stainless Steel Flat-wire Coil
Semi rigid(SR):Bendable and can be in a fixed position
Soft metal(SM):Soft,bendable and resilient.
-
Specification
Features Description Camera Diamete Ø 3.9 mm Ø 5.5 mm Ø 8.5 mm Camera Type Front / Side (optional) Front Only Front Only F.O.V 56° D.O.F. 10 mm ~ 60 mm Resolution 320 X 240 ( QVGA ) Probe Material Semi-Rigid (SR) Soft-Metal (SM)
Semi-Rigid (SR)Semi-Rigid (SR) Light Source Front View (White LED * 3 )
Side View (White LED *2 )Front View (White LED * 4 ) White LED * 6 Probe Length 1M / 2M / 3M SM : 1M / 2M / 3M / 5M / 10M / 30M
SR : 1M / 2M / 3M1M / 2M / 3M Working Temperature -10°C ~ 60°C Working Temperature Unavailable 70°, 90°, 110° Side View Mirror Unavailable -
Console System
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model
Model Tip Dia. Length Material of Tube Console System JKR-3901 Ø 3.9mm 1M Semi-Rigid 7" Monitor JKR-3902 Ø 3.9mm 2M Semi-Rigid 7" Monitor JKR-3903 Ø 3.9mm 3M Semi-Rigid 7" Monitor JKS-5501 Ø 5.5mm 1M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5502 Ø 5.5mm 2M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5503 Ø 5.5mm 3M Soft-Metal (Semi-Rigid) 7" Monitor JKS-5505 Ø 5.5mm 5M Soft-Metal 7" Monitor JKS-5510 Ø 5.5mm 10M Soft-Metal 7" Monitor JKS-5530 Ø 5.5mm 30M Soft-Metal 7" Monitor JKR-8501 Ø 8.5mm 1M Semi-Rigid 7" Monitor JKR-8502 Ø 8.5mm 2M Semi-Rigid 7" Monitor JKR-8503 Ø 8.5mm 3M Semi-Rigid 7" Monitor JFR-3901 Ø 3.9mm 1M Semi-Rigid 3.5" Monitor JFR-3902 Ø 3.9mm 2M Semi-Rigid 3.5" Monitor JFR-3903 Ø 3.9mm 3M Semi-Rigid 3.5" Monitor JFS-5501 Ø 5.5mm 1M Soft-Metal (Semi-Rigid) 3.5" Monitor JFS-5502 Ø 5.5mm 2M Soft-Metal (Semi-Rigid) 3.5" Monitor JKS-5503 Ø 5.5mm 3M Soft-Metal (Semi-Rigid) 3.5" Monitor JFS-5505 Ø 5.5mm 5M Soft-Metal 3.5" Monitor JFS-5510 Ø 5.5mm 10M Soft-Metal 3.5" Monitor JFS-5530 Ø 5.5mm 30M Soft-Metal 3.5" Monitor JFR-8501 Ø 8.5mm 1M Semi-Rigid 3.5" Monitor JFR-8502 Ø 8.5mm 2M Semi-Rigid 3.5" Monitor JFR-8503 Ø 8.5mm 3M Semi-Rigid 3.5" Monitor -
Optional Accessory
Climbing Ball
For Ø5.5mm Probe
- Diameter : Ø15mm / Ø25mm
Side Mirror
For Ø5.5mm Probe
- Angle : 70° / 90° / 110° -
Q&ARigid? Semi-rigid? Soft-metal Probe of Video BorescopeRigid: Rigid borescopes are the most inexpensive type of borescope. A rigid borescope consists of a single hollow tube along with an eyepiece, lenses and a light source.Their movement is limited. Users can inspect objects only up to a certain level because of lacking of flexibility. They are usually used in areas that have direct access to because they have little to no flexibility. They transmit images by traditional lenses that display through an eyepiece. Inspectors commonly use this type for its image clarity and durability.Flexible: A flexible videoscope or video borescope with soft-metal probe is an advanced type of borescope that has a very small image sensor embedded into the tip of the scope.The video image is relayed from the tip and camera lens assembly back to the display via internal wiring.This is unlike a traditional rigid borescope and flexible fiberscope. Inspectors commonly use this type for its image versatility,agility, and efficiency.Semi-rigid: A improvement from rigid borescopes, semi-rigid borescopes are bendable and best for confined spaces that do not offer room for articulation.In terms of current technology, semi-rigid probes and soft-metal probes have the same image quality, light, and durability. Which one to choose depends on the purpose of usage and application.
