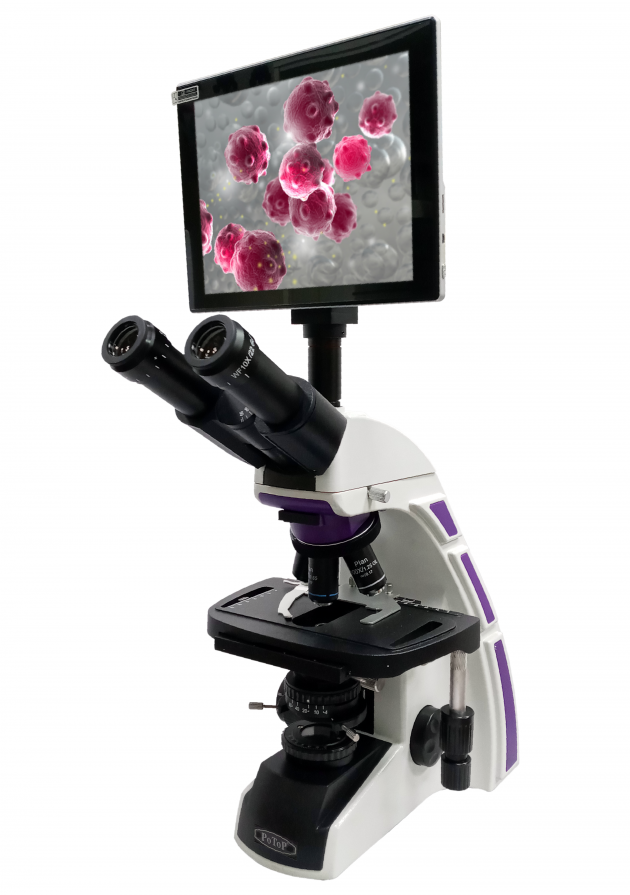

• PBD-4330L

  Features	Description
  Model	PBD-4330L
  Viewing head	Trinocular tube, inclined at 30 °, angle 360 ° rotation ,Machine barrel length 180mm
  Eyepiece	Wide angle WF10X (22mm)
  Objective	Plan Achromate objective: PL 4X/ N.A.0.10 / W.D.18mm Infinity Plan Objective: ∞ 10X/0.25 W.D.= 16mm Infinity Long W.D. Plan Objective: ∞ 20X/0.4, Phase Contrast, W.D=10mm Infinity Long W.D. Plan Objective: : 40X/0.6 W.D=5.4mm
  Observation magnification	40 X ~ 1000 X
  Condenser	N.A .1.25 ABBE condenser, W.D=15mm
  Focusing	Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm
  Illumination	5W LED Brightness Adjustable
  Option	Eyepiece WF20X,Phase Contrast Device
  Display Model	CME-5699
  CMOS Pixel	5.0 Mega Pixel
  CMOS Size	1/2.5"
  Pixel Size	2.2μm X 2.2μm
  Frame Rate	2048 X 1563 (15/fps)
  Display	9.7"
  Image output method	USB2.0、HDMI、WIFI、TF
  Operating system	Android 5.1.1 version
  Wifi	2.4GHz/5GHz dual-band WIFI support 802.11a/b/g/n/ac protocol
  Bluetooth	Bluetooth 4.0
  Power	supply DC-12V/2A
  Basic functions	brightness, contrast, saturation, white balance
  Image quality	adjustment Exposure, sharpness, Gamma, color,temperature adjustment
  Camera function	Mirror, flip
  UI interface	Mouse operation and touch operation
  Take photos and videos	16 million pixel photos, 1080P video
  Storage function	Instant photo, video, picture preview, SD card format
  Marking function	Point coordinates, crosshairs, coordinate system, text annotations
  Length measurement	Straight line length, broken line length, curve length, parallel line distance, dot line distance
  Geometric measurement	Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle, radius fixed circle
  Geometric area measurement	Polygon, square
  measuring system	Built-in S-EYE test software
  Dimensions	238 X 51 X 206 mm
  Single machine weight	0.6 kg
  Standard accessories	DC-12V/2A power supply, wireless mouse
