● Articulation function helps you to easily maneuver the camera probe into extremely tight spaces, helping to check angles generally could not be seen easily.
● Equiped with three useful function keys: Boost light / Image Rotate / Side & Forward Led Switch (Dust free & Anti Reflection)
-
Two - Way Articulation Probe
Easy control over probe articulation. Allows wider angle viewing during inspection.
640x480(Dynamic), Particle-free for Mirror, Anti-reflection,Brighter Image(~80cm),Rotatable Image
ANTI-REFLECTION FUNCTION
Side LED Turn On
DUST FREE FUNCTION(WITH MIRROR)Articulation Probes Compare
IMAGE BRIGHTNESS BOOST
360° Articulation
Short - Tip Articulation(2 Way Articulation)
Short - Tip Articulation(1 Way Articulation)
2 Way Articulation

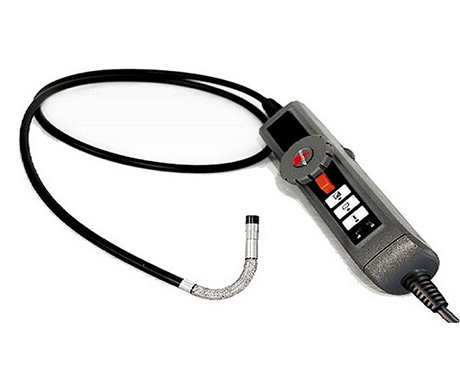

**2 Way Articulation Probe 6mm (J Series): Precision Refined**
The 2 Way Articulation Probe 6mm (J Series) redefines precision in inspections. With seamless control for a broader viewing angle, this advanced tool ensures meticulous examinations in diverse scenarios.
Equipped with a dynamic 640x480 resolution, experience a particle-free mirror, anti-reflection, and a brighter image for enhanced visibility up to 80cm. The rotatable image feature effortlessly adapts to varying inspection conditions.
Featuring an anti-reflection function and side LED turn-on for clear visuals in challenging conditions, the dust-free function with a mirror maintains image quality, while the image brightness boost enhances visibility during precise examinations.
Compared to traditional probes, the 2 Way Articulation Probe stands out with its exceptional 360° articulation and short-tip movement in two directions, providing unparalleled control and precision.
Elevate your inspection capabilities with the 2 Way Articulation Probe 6mm (J Series), a versatile solution delivering clarity and flexibility across applications. Experience the next level of inspection precision with this advanced tool.
-
Features Description Probe Type 2Way Articulation Tip Diamete Ø 6.0 mm Camera Length 23mm Camera Material Stainless Steel F.O.V 87° D.O.F. 10 mm ~ 100 mm Resolution 640 X 480 ( VGA ) Light Source Front (White LED * 3 ) / Side (White LED * 2 ) Working Temperature -10°C ~ 60°C Probe Material Soft - Metal Probe Length 1M / 2M / 3M Articulation Angle Right / Left ≥ 155° ( 1M) Articulation Radius (at angle 90°) ≒ 50mm ( 1M) Articulation Radius (at max angle) ≒ 45mm ( 1M) Mirror Available (70° / 90° / 110° View) Waterpoof IP67 -
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model Type of Probe Tip Dia. Length Material of Tube Console System JKVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 7" Monitor JKVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 7" Monitor JKVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 7" Monitor JFVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 3.5" Monitor JFVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 3.5" Monitor JFVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 3.5" Monitor -
Side Mirror
- Angle : 70° / 90° / 110°
Holding Tube
Extender to inspect areas lower or higher than eye level.
- Diameter : Ø8mm
- Lengh : 990mm
-
Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.
Below is common knowledge of these two types:
Non Articulation Borescope Articulation Borescope Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant) Assembly Process Easier More Complicated with multi production procedures Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment Disadvantage Limited viewing angle for inspection More expensive for new and repair
-
Introduction
Two - Way Articulation Probe
Easy control over probe articulation. Allows wider angle viewing during inspection.
640x480(Dynamic), Particle-free for Mirror, Anti-reflection,Brighter Image(~80cm),Rotatable Image
ANTI-REFLECTION FUNCTION
Side LED Turn On
DUST FREE FUNCTION(WITH MIRROR)Articulation Probes Compare
IMAGE BRIGHTNESS BOOST
360° Articulation
Short - Tip Articulation(2 Way Articulation)
Short - Tip Articulation(1 Way Articulation)
2 Way Articulation
**2 Way Articulation Probe 6mm (J Series): Precision Refined**
The 2 Way Articulation Probe 6mm (J Series) redefines precision in inspections. With seamless control for a broader viewing angle, this advanced tool ensures meticulous examinations in diverse scenarios.
Equipped with a dynamic 640x480 resolution, experience a particle-free mirror, anti-reflection, and a brighter image for enhanced visibility up to 80cm. The rotatable image feature effortlessly adapts to varying inspection conditions.
Featuring an anti-reflection function and side LED turn-on for clear visuals in challenging conditions, the dust-free function with a mirror maintains image quality, while the image brightness boost enhances visibility during precise examinations.
Compared to traditional probes, the 2 Way Articulation Probe stands out with its exceptional 360° articulation and short-tip movement in two directions, providing unparalleled control and precision.
Elevate your inspection capabilities with the 2 Way Articulation Probe 6mm (J Series), a versatile solution delivering clarity and flexibility across applications. Experience the next level of inspection precision with this advanced tool.
-
Specification
Features Description Probe Type 2Way Articulation Tip Diamete Ø 6.0 mm Camera Length 23mm Camera Material Stainless Steel F.O.V 87° D.O.F. 10 mm ~ 100 mm Resolution 640 X 480 ( VGA ) Light Source Front (White LED * 3 ) / Side (White LED * 2 ) Working Temperature -10°C ~ 60°C Probe Material Soft - Metal Probe Length 1M / 2M / 3M Articulation Angle Right / Left ≥ 155° ( 1M) Articulation Radius (at angle 90°) ≒ 50mm ( 1M) Articulation Radius (at max angle) ≒ 45mm ( 1M) Mirror Available (70° / 90° / 110° View) Waterpoof IP67 -
Console System
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model
Model Type of Probe Tip Dia. Length Material of Tube Console System JKVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 7" Monitor JKVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 7" Monitor JKVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 7" Monitor JFVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 3.5" Monitor JFVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 3.5" Monitor JFVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 3.5" Monitor -
Optional Accessory
Side Mirror
- Angle : 70° / 90° / 110°
Holding Tube
Extender to inspect areas lower or higher than eye level.
- Diameter : Ø8mm
- Lengh : 990mm -
Q&AArticulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.
Below is common knowledge of these two types:
Non Articulation Borescope Articulation Borescope Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant) Assembly Process Easier More Complicated with multi production procedures Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment Disadvantage Limited viewing angle for inspection More expensive for new and repair
