You don't need the mirror set to be the 90° side view, just clicking the button to change forward-view and 90° side-view quickly and easily.
-

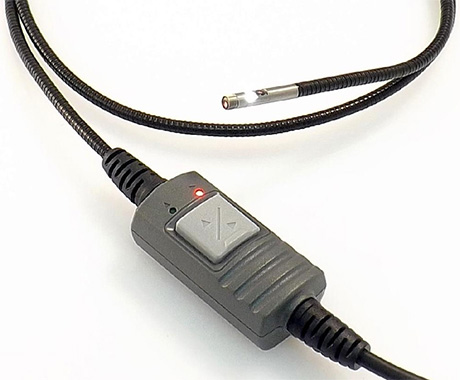

4.9mm Dual - Camera Probe
Hassle-free view-switching probe
Save time and increase efficiency.
Built-in dual-camera lens and LED light
Quick and easy switching between forward and side views during inspection
Speed up the process of inspection where both front view and side view are needed
IP67 waterproof
**Dual Cameras Switch Probe (J Series): Versatile Inspection Solution**
Experience a groundbreaking inspection tool with our 4.9mm Dual Cameras Switch Probe. Engineered for seamless view-switching, this innovative device enhances efficiency, saving time during inspections.
Our probe features built-in dual cameras and LED lights, allowing users to effortlessly switch between forward and side views. This accelerates the inspection process, making it perfect for tasks requiring both perspectives.
With an IP67 waterproof rating, the probe ensures durability and reliable performance in challenging environments, including water pipes, industrial sites, and construction zones.
Upgrade your inspection capabilities with the Dual Cameras Switch Probe (J Series) — a reliable, efficient, and versatile solution for diverse inspection needs. -
Features Description Tip Diamete Ø 4.9 mm Type of Camera Dual Cameras ( Front & Side ) Camera Length 28mm Camera Material Stainless Steel Probe Material Semi-Rigid F.O.V 56° D.O.F. 10 mm ~ 60 mm Resolution 320 X 240 ( QVGA ) Working Temperature 0°C ~ 55°C Light Source Front : White LED * 2
Side : White LED * 1Probe Length 1M / 2M / 3M Waterpoof IP67 Function Change Camera to Front / Side View -
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model Type of Probe Tip Dia. Length Material of Tube Console System JKR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 7" Monitor JKR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 7" Monitor JKR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 7" Monitor JFR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 3.5" Monitor JFR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 3.5" Monitor JFR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 3.5" Monitor - Building Data...
-
Introduction
4.9mm Dual - Camera Probe
Hassle-free view-switching probe
Save time and increase efficiency.
Built-in dual-camera lens and LED light
Quick and easy switching between forward and side views during inspection
Speed up the process of inspection where both front view and side view are needed
IP67 waterproof
**Dual Cameras Switch Probe (J Series): Versatile Inspection Solution**
Experience a groundbreaking inspection tool with our 4.9mm Dual Cameras Switch Probe. Engineered for seamless view-switching, this innovative device enhances efficiency, saving time during inspections.
Our probe features built-in dual cameras and LED lights, allowing users to effortlessly switch between forward and side views. This accelerates the inspection process, making it perfect for tasks requiring both perspectives.
With an IP67 waterproof rating, the probe ensures durability and reliable performance in challenging environments, including water pipes, industrial sites, and construction zones.
Upgrade your inspection capabilities with the Dual Cameras Switch Probe (J Series) — a reliable, efficient, and versatile solution for diverse inspection needs. -
Specification
Features Description Tip Diamete Ø 4.9 mm Type of Camera Dual Cameras ( Front & Side ) Camera Length 28mm Camera Material Stainless Steel Probe Material Semi-Rigid F.O.V 56° D.O.F. 10 mm ~ 60 mm Resolution 320 X 240 ( QVGA ) Working Temperature 0°C ~ 55°C Light Source Front : White LED * 2
Side : White LED * 1Probe Length 1M / 2M / 3M Waterpoof IP67 Function Change Camera to Front / Side View -
Console System
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model
Model Type of Probe Tip Dia. Length Material of Tube Console System JKR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 7" Monitor JKR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 7" Monitor JKR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 7" Monitor JFR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 3.5" Monitor JFR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 3.5" Monitor JFR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 3.5" Monitor -
Optional Accessory
-
ApplicationBuilding Data...
